Technical Specifications
| pH | Measuring Range | -2.00 to 16.00 pH |
| Resolution | 0.1/0.01 pH | |
| Accuracy | ±0.01 pH ±1 digit | |
| Temperature Compensation Range | (0 to 100)˚C (Auto. or Manual) | |
| Calibration point | 1 to 3 points | |
| mV | Measuring Range | ±2000mV |
| Resolution | 1mV | |
| Accuracy | ±0.1% FS ±1 digit | |
| Cond. | Measuring Range | Conductivity：0~200 mS/cm, divided into five ranges, automatically switch measuring range.
(0 to 19.99) μS/cm; (20.0 to 199.9) μS/cm; (200 to 1999) μS/cm; (2.00 to 19.99) mS/cm; (20.0 to 199.9) mS/cm TDS: (0 to 100) g/L; Salinity: (0 to 100) ppt |
| Resolution | 0.01/0.1/1μS/cm 0.01/0.1 mS/cm | |
| Accuracy | ±1.0% FS ±1 digit | |
| Temperature Compensation Range | (0 to 50)˚C (Auto. or Manual) | |
| Cell constant | 0.1/1/10 cm-1 | |
| Temp. | Measuring Range | 0 to 100℃ |
| Resolution | 0.1℃ | |
| Accuracy | ±0.5℃±1 digit |
Other Specifications
| Data Storage | 500 sets |
| Storage Content | Numbering, measuring value and temperature value, data and time |
| Power | 3* AA alkaline batteries |
| Dimension & Weight | Meter: (88*170*33)mm / 313g
Case: (360*270*76)mm / 1.6kg |
| Connector | BNC for pH and ORP; RCA for temperature, 8-pin for conductivity |

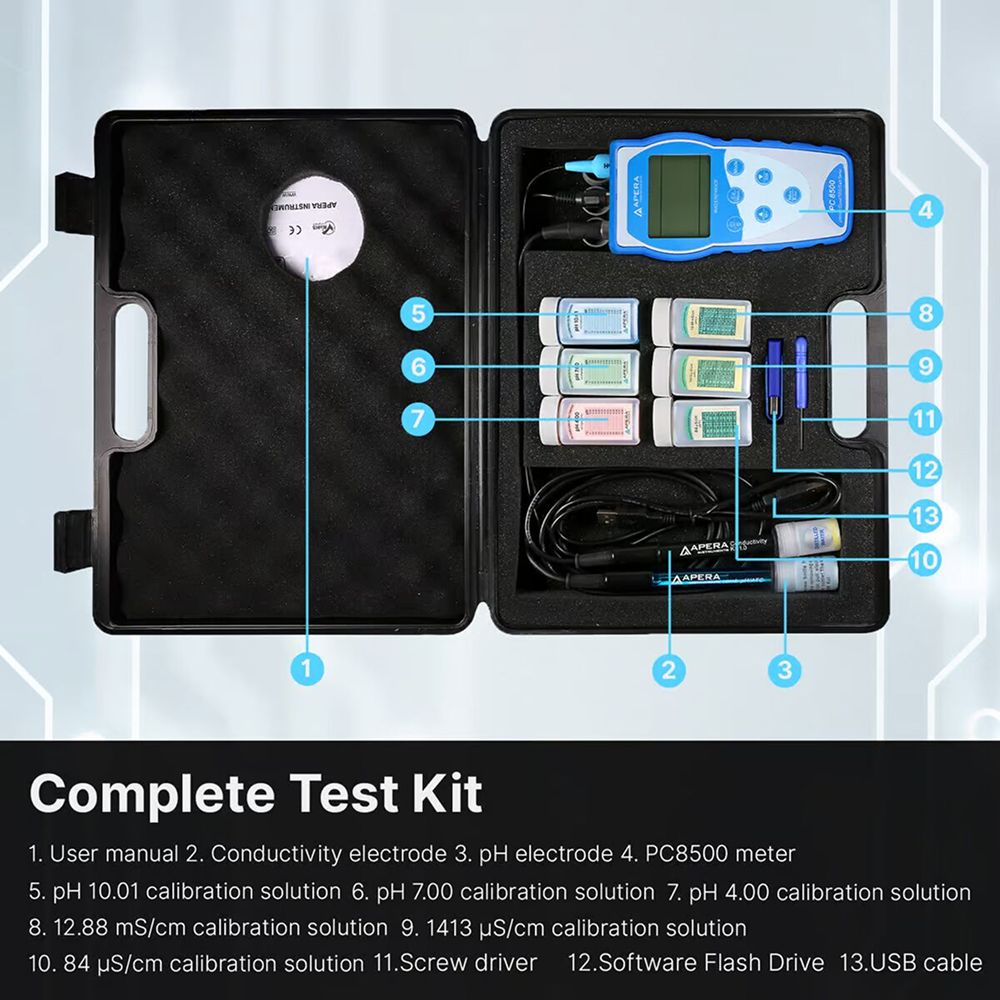

| What’s in the box? | PC8500 meter, 201T-F pH/temp. electrode, 2301T-S conductivity/temp. electrode, electrode clip, software flash drive, USB cable, 50ml of pH buffers (4.00, 7.00), 50ml of conductivity standards (1413µS, 12.88mS), screwdriver (for battery replacement), instruction manual, carrying case |
